This kit can be used to make a shed or room alarm when mounted on the top of a door, drawers or any other object with a moveable opening. It can also be used by replacing the micro switch with a magnetic door contact.

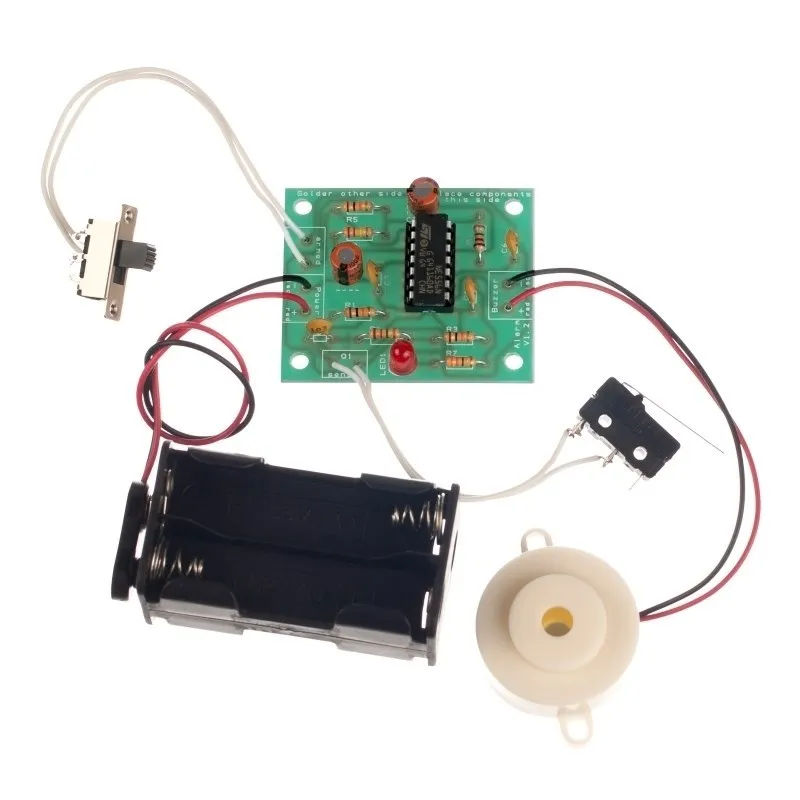

A micro switch acts as a trigger mechanism and is armed / disarmed by a seperate sliding switch. The door's movement is detected by a micro switch mounted onto a door or object with a lid. A timer provides an entry delay during which the system can be disarmed by the slide switch, whilst a separate timer silences the alarm after two minutes. Both of these timers are implemented via a 556 dual timer IC.

The alarm can be further enhanced by using a simple for arming / disarming or by replacing the micro switch with a to activate it. The board, battery pack & buzzer can be placed into a box designed by the student.

Features:

• Can be enhanced with a to arm/disarm.
• Can be enhanced by replacing the micro switch with a .
• Entry delay for disarming.

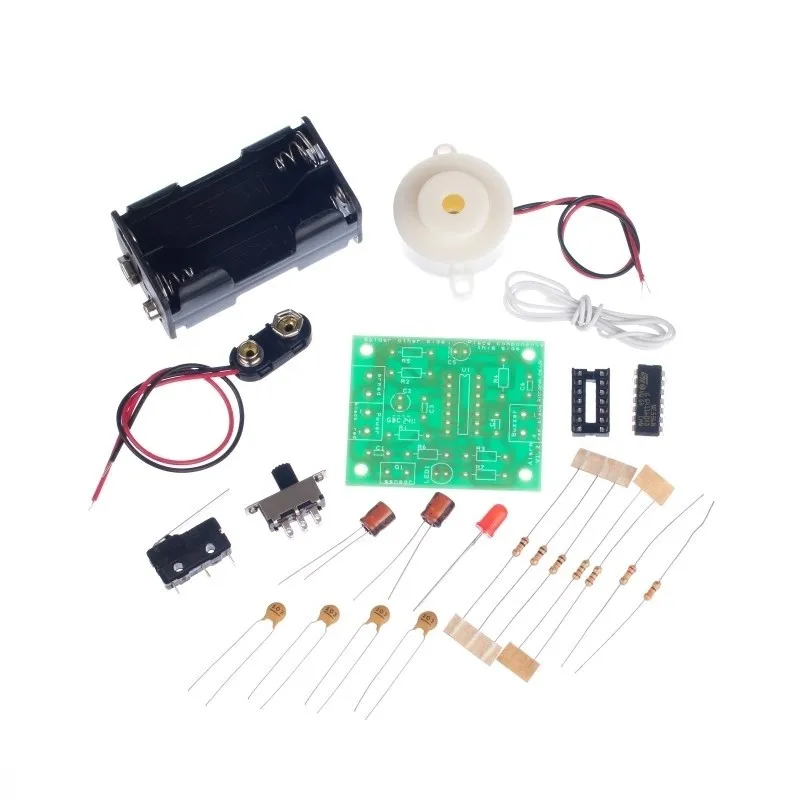

Contents:

• 1 x .
• 1 x .
• 1 x .
• 1 x .
• 1 x .
• 1 x .
• 4 x .
• 2 x .
• 3 x .
• 1 x .
• 2 x .
• 1 x .
• 1 x .
• 1 x .
• 1 x Alarm Project Kit PCB.

Possible applications include:

• Adding an alarm to a cookie/biscuit tin.
• Adding an entry alarm to a door.

Dimensions:

• PCB Length: 51mm.
• PCB Width: 41.5mm.

Requires:

• 4 x .

Resources:

• .
• .

This kit is supplied in a simple grip seal bag.

Note:

 This is an educational kit and should not be used to secure anything of value.
